Report item
Item specifics
  • Model Number: IN-2D5M
  • Processor Model Number: D2550
  • Display Type: Touch Screen
  • Dispaly Ratio: 4:3
  • Memory Capacity: ≥ 4GB
  • Hard Drive Capacity: 120GB
  • Processor Series: Intel Atom
  • Type: All-In-One
  • Port: hdmi
  • Processor Brand: Intel
  • Brand Name: Partaker
  • Screen Size: 12-inch
  • Graphics Card Type: Integrated Card
  • Products Status: Stock
  • Processor Main Frequency: 1.86
  • is_customized: Yes
Product Description

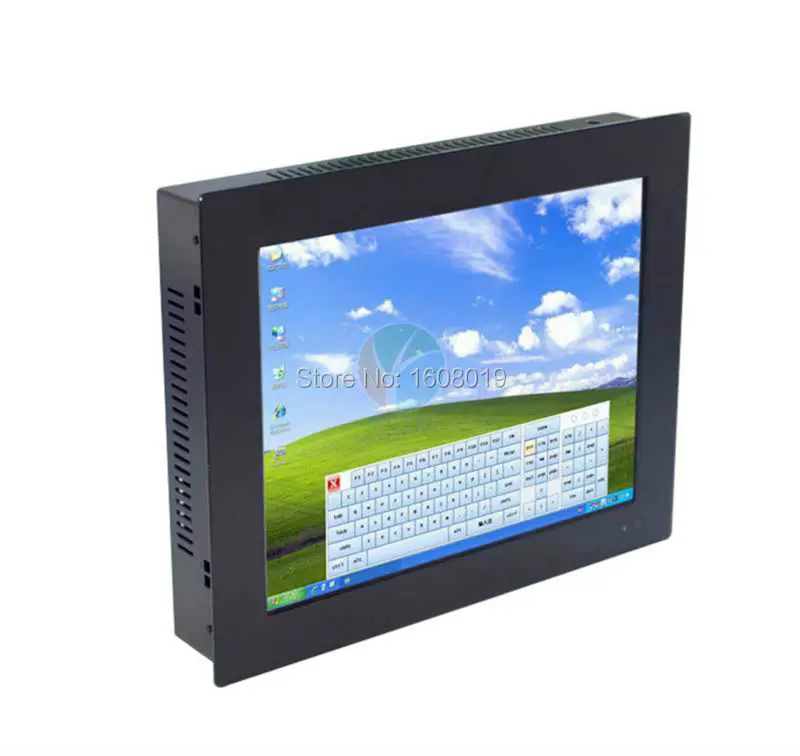

All in one computer mini terminal 12 inch Five wire Gtouch using high-temperature ultra thin panel with 4G RAM 128G SSD

-_01

Editor Notes



Multifunction self-service computer provides 10 to 15 inch multi-touch screen,

a variety of services to meet the required applications, such as retail shelves billboard

exhibition interactive information systems, campus curriculum inquiry system and

even healthcare institutions versatile bedside stand. Easy to clean the whole plane of

the touch panel IP65 protection with slim design, can show the advantages of the various

service applications; programmable touch shortcut keys and a wealth of microphones,

radio frequency identification (RFID), the smart card chip reader , bar code scanners,

magnetic stripe card reader (MSR) and other options,

suitable for use in a variety of contexts.



Attributes



Configuration
Model IN-2D5M
CPU Intel Atom D2550 Dual Core
GPU Integrated Intel GMA 3650 graphics core Four Thread 1.86Ghz 1MB
RAM Support NB Memory SO-DIMM DDR3 (Maximum to 4G RAM)
Storage Support 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1TB)
Wi-Fi Wireless-(150Mbps or 300Mbps optional)
Package

AIO+Power Supply+Power Cord (USA, European, UK Types for optional)+Stand



Rear I/O:



DC-IN

LAN

4*USB

VGA

HDMI

Audio input and output

2*RS232





With Fan



Upgrade Service:



1. WiFi Optional, if need wifi,(150Mbps) builtin wireless add extra $8,

(300Mbps) add $10. Choose one from 150M and 300M.

2. Wall Mount add $10

3. USB Bluray DVD add $48, Normal DVD add $28



4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.



Ref. Photo as belows,



Wall mount Photo











960

Upgrade link for the upgrade service: http://www.aliexpress.com/store/product/2014-stock-computador-de-mesa-host-computer-server-compatible-computers-home-office-assembled-desktop-mini-pc/1608019_32254907855.html

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi,

buy 10pcs for $10, Upgrade value, 1pc=$1)



system

4G RAM, 120G SSD included.



If customer buy the configuration with RAM, SSD, HDD, We can install system as belows,


XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5
Above is Cracked English Version.

Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)
systemDescription



Features:





Using Taiwan 5 line high-temperature process touch screen, life is more than made 4-wire touch screen five times, the failure rate of less than Five thousandths, it is made a touch screen can not be achieved, high precision, drift-free, ultra-thin panel design, almost the cabinet panel is flat the highest quality and cost-effective with similar products

This machine is a high temperature process using Taiwan Gtouch brand 5-wire touch screen, touch screen click on the life expectancy of 35 million times, Advantech and other large companies have adopted, if not broken, almost never fail, stability, life is incomparable homemade touch, in order to further enhance the quality, my company plans to gradually replace existing products into Taiwan Gtouch 5 wire touch

Full Metal Jacket, 2mm ultra-thin panel design, suitable for embedded installation

Original 12-inch LED industrial LCD screen, 1024 * 768 resolution, operating temperature -30 degree ~ 80 degree, the brightness of 420CD / c

Optional WIFI module

With a separate package

Specification

Dimensions:

309.1mm * 247.5mm

Hole Size:

295mm * 234mm

Display:

12.1-inch LED screen resolution of 1024 * 768 Industry

Touch screen:

Taiwan Gtouch temperature 5-wire resistive screen

CPU:

ATOM D2550 Dual Core 1.86G

NIC:

1000M

Built-in speakers:

2W mono

The lower side of the interface:

DC_IN * 1, LAN * 1, USB * 2, VGA * 1, HDMI * 1, AUDIO * 2, RS232 * 2

The back of the interface:

USB * 2

Gross weight:

4.5KG

Package Contents:

All in one pc* 1, 12V 4A power+ power cord*1, flush mounted snap 4

Features:

12V DC input, Power consumption 20W, support calls boot, Wake on LAN

Machine pre-installed WINXP, good stability, bootable work long hours

Note: This machine WINXP system graphics driver does not support 3D hardware acceleration, can not run 3D applications, if there is such a need, you must use WIN7 system.
-_03-_04-_05
