Report item
Item specifics
  • Processor Model Number: D2550
  • Display Type: Touch Screen
  • Hard Drive Capacity: ≤ 40GB
  • Processor Series: Intel Atom
  • Dispaly Ratio: 4:3
  • Type: All-In-One
  • Model Number: IN-9D42
  • Optical Drive Type: CD-ROM
  • RAM Type: DDR3
  • Memory Capacity: 2GB
  • Processor Brand: Intel
  • Port: HDMI+VGA
  • Brand Name: Partaker
  • Graphics Card Type: Integrated Card
  • Drive Type: No CD ROM
  • HDD Rotation Speed: 7200 rpm
  • Products Status: Stock
  • Processor Main Frequency: 1.86
  • Screen Size: 9.7inch
  • Size: 9.7-inch LED display
  • Resolution: 1024*768
  • Machine size: 256.4 mm *204.5 mm * 42.6 mm
  • Hole Size: 220 mm*148 mm
  • Colour: Silver
  • CPU: ATOM D2550 dual-core 1.86G
  • Graphics Type: Integrated Card
  • Sound Card Type: 6.1
Product Description

9 inch Intel Atom D2550 1.86Ghz Touchscreen Desktop PCwith 2G RAM 32G SSD

-_01

Editor Notes

Industrial Touch Monitors PC(ITM) provides rugged,

stand alone industrial monitors pc,

is designed for easy cleaning especially in harsh environments.

Attributes

Configuration
Model  IN-9D42
CPU Intel Atom D2550 1.86Ghz
Network  INTEL 1000M *2
RAM Support NB Memory SO-DIMM DDR3 (Maximum to 4G RAM)
Storage Support 1*Mini PCIE Msata SSD (SSD Max.512G)
Wi-Fi Wireless-(150Mbps or 300Mbps optional)
Package

AIO+Power Supply+Power Cord (USA, European, UK Types for optional)+Stand

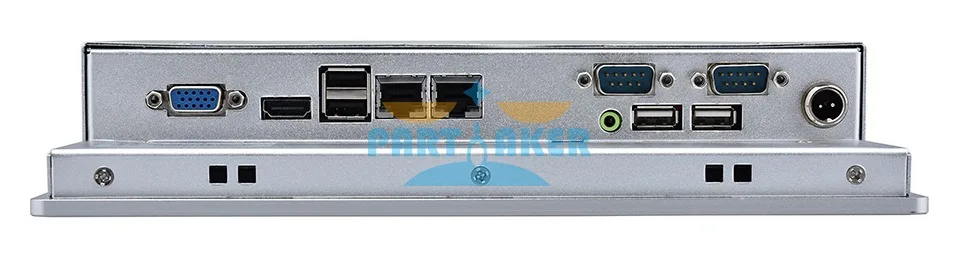

Rear I/O:

4*USB

2* LAN

VGA

HDMI

Audio input and output

2*RS232

With Fan



Upgrade Service:

Fanless Version add $26 (default is fan version)

1. WiFi Optional, if need wifi,(150Mbps) builtin wireless add extra $8, (300Mbps) add $10. Choose one from 150M and 300M.

2. Wall Mount add $10

3. USB Bluray DVD add $48, Normal DVD add $28

4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

Ref. Photo as belows,

Wall mount Photo 960

Upgrade link for the upgrade service: http://www.aliexpress.com/store/product/Hot-selling-mini-pc-desktop-all-in-one-computer-for-HTPC-Office-Educational-etc/1501885_32231555556.html

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi, buy 10pcs for $10, Upgrade value, 1pc=$1)system

2G RAM 32G SSD

If customer buy the configuration with RAM, SSD, HDD, We can install system as belows,



 XP/windows 7/Ubuntu Linux optional

(if not leave message, we will ship at Random.)

Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5

Above is Cracked English Version.

Original Windows, please buy it locally!

For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)

system
Description
Model Number IN-9D42
Display features Size 9.7-inch LED display
Resolution 1024*768
Brightness 390cd/m2
Responding speed 5ms
Physical Characteristics Machine size 256.4 mm (length) × 204.5 mm (W) × 42.6 mm (H)
Hole Size 220 mm (length) × 148 mm (W)
Material Aluminum
Weight 1.8KG /2.2KG (Net / Gross)
Colour Silver
Performance Configuration CPU ATOM D2550 dual-core 1.86G
RAM 2GB DDR3 notebook memory
SSD 64GB SSD
Graphics card INTEL GMA3600
System Windows XP, Windows 7, LINUX
I / O Interface USB 4*USB2.0
RS232 2 RS232 interface (COM2 adjustable for the RS485 / RS422)
Ethernet port 2 INTEL dual 1000M wired LAN
Audio Built-in 2W speaker * 2
Display VGA*1,HDMI*1
Environmental Testing IP protection class Default IP63
Operating temperature (-10  ~ 60 ) surface air flow
Storage temperature (-20~70)
Working humidity 10% ~ 95% @ 40  without condensation
Packing list Host computer 1 unit
Power Supply 1 unit
power cable 1 Piece
Embedded installation snap 4 pieces

-_03-_04-_05Additional

About Power Cord:

We will ship the type of power cord, based on your area.



Power Cord
