Item specifics
  • Processor Model Number: D2550
  • Hard Drive Capacity: ≤ 40GB
  • HDD Rotation Speed: SSD
  • Processor Series: Intel Atom
  • Dispaly Ratio: 4:3
  • Type: All-In-One
  • Display Type: LCD
  • Operating System: Linux
  • Model Number: IN-0D52
  • RAM Type: DDR3
  • Memory Capacity: ≤ 128MB
  • Processor Brand: Intel
  • Port: HDMI+VGA
  • Brand Name: Partaker
  • Graphics Card Type: Integrated Card
  • Drive Type: No CD ROM
  • Optical Drive Type: DVD-ROM
  • Products Status: Stock
  • Processor Main Frequency: 1.86
  • Screen Size: 10 inch
  • is_customized: Yes
  • Memory Capacity: Shared Memory
  • HDD Interface: SATA3
  • Graphics Type: Integrated Card
  • Sound Card Type: 6.1
Product Description

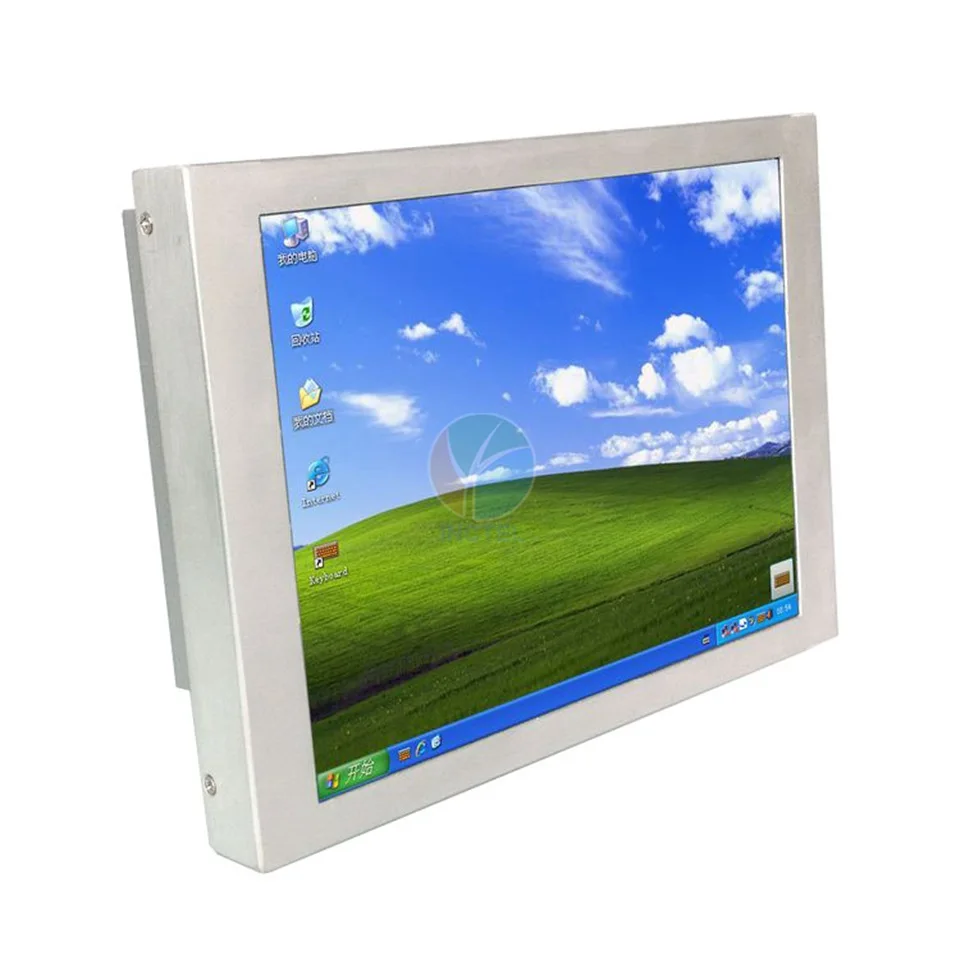

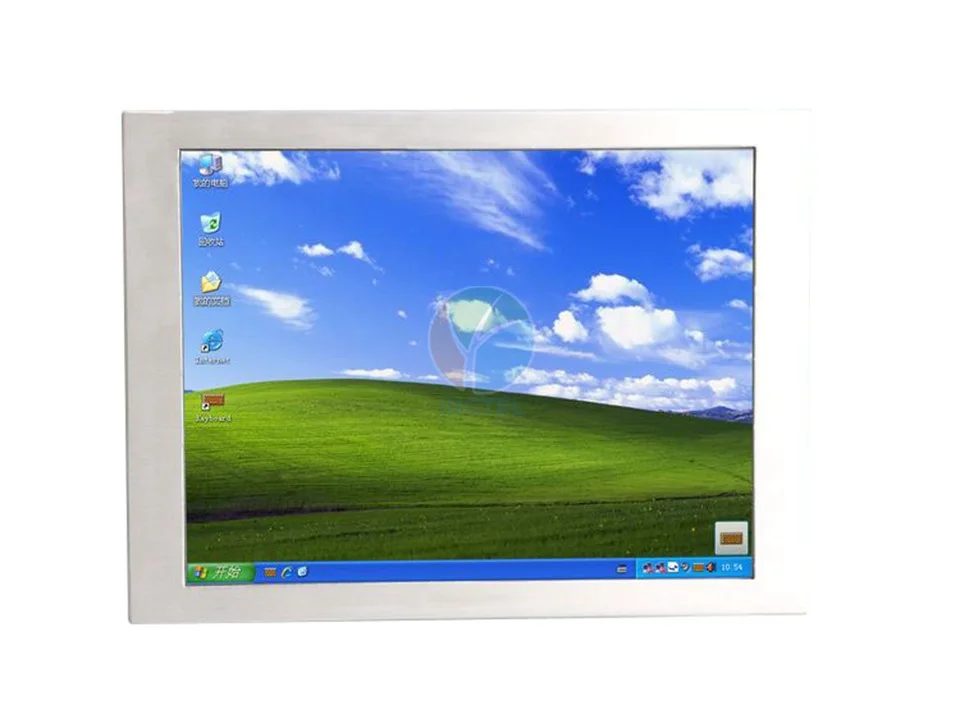

Cheap Barebone Driving Test System All in One PC with Intel Atom D2550 Processor 10 inch Touch Screen

Editor Notes.jpg

Multifunction self-service computer provides 10 to 15 inch multi-touch screen,

a variety of services to meet the required applications, such as retail shelves billboard

exhibition interactive information systems, campus curriculum inquiry system and

even healthcare institutions versatile bedside stand. Easy to clean the whole plane of

the touch panel IP65 protection with slim design, can show the advantages of the various

service applications; programmable touch shortcut keys and a wealth of microphones,

radio frequency identification (RFID), the smart card chip reader , bar code scanners,

magnetic stripe card reader (MSR) and other options,

suitable for use in a variety of contexts.

Model  IN-0D52
CPU Intel Atom D2550 Dual Core 1.86G
GPU Integrated Intel GMA 3600 graphics core
RAM Support NB Memory SO-DIMM DDR3 (Maximum to 4G RAM)
Storage Support 1*Mini PCIE Msata SSD (SSD Max.512G)
Wi-Fi Wireless-(150Mbps or 300Mbps optional)

AIO+Power Supply+Power Cord (USA, European, UK Types for optional)+Stand

Rear I/O:





Audio input and output


With Fan

Upgrade Service:

1. WiFi Optional, if need wifi,(150Mbps) builtin wireless add extra $8, (300Mbps) add $10. Choose one from 150M and 300M.

2. Wall Mount add $10

3. USB Bluray DVD add $48, Normal DVD add $28

4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

Ref. Photo as belows,

Wall mount Photo


Upgrade link for the upgrade service:

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi, buy 10pcs for $10, Upgrade value, 1pc=$1)



If customer buy the configuration with RAM, SSD, HDD, We can install system as belows,

XP/windows 7/Ubuntu Linux optional

(if not leave message, we will ship at Random.)

Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5

Above is Cracked English Version.

Original Windows, please buy it locally!

For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)

Model  IN-0D52
Display Size 10-inch LED display industry
CPU Intel Atom D2550 Dual Core 1.86G
GPU Integrated Intel GMA 3600 graphics core
Memory 2GB DDR3 Notebook Memory (optional 4GB)

16GB SSD High Stability, Optional 32GB / 64GB / 128GB SSD)

Support 1*Mini PCIE Msata SSD (SSD Max.512G)

Operating System Windows XP, Windows 7, LINUX
Audio Built-in 2W speaker
Display card  INTEL GMA3600
Resolution 800 × 600
Brightness 430cd / m2
Response time 5ms
Network 2 INTEL dual 1000M wired LAN
Touch feature Brand Abontouch (or Gtouch)
Touch screen Taiwan high temperature five-wire resistive touch screen
Click to life > 35 million times
I/O Ports
I/O Specifications

4 x USB 2.0

2x RS232 interfaces (one adjustable for RS485 / RS422)

2x INTEL dual 1000M wired LAN

VGA * 1

HDMI * 1

Power and Working Environment
Working temperature -10 degree ~ 60 degree surface air flow
Storage Temperature (-20/+70)Centigrade
Relative Humidity 95% at 40 degree without condensation
Environmental testing IP Protection IP61 default
Product Dimension&Details
Size 245 mm (length) × 182 mm (W) × 54.7 mm (H)
Hole size 220 mm (length) × 135 mm (W)
Weight 3KG
Shell Silver sheet metal / aluminum panel
Package Box Neutral Color Box or INCTEL Color Box
Content AIO+Power Supply+Power Cord+Stand

About Power Cord:

We will ship the type of power cord, based on your area. Power Cord.jpg

10.1 inch all in one pc (5).jpg10.1 inch all in one pc (6).jpg10.1 inch all in one pc (4).jpg10.1 inch all in one pc (2).jpg10.1 inch all in one pc (3).jpg10.1 inch all in one pc (1).jpg
