Item specifics
  • Model Number: Z5
  • Hard Drive Capacity: 120GB
  • Memory Capacity: ≥ 4GB
  • Processor Series: Intel Atom
  • Port: hdmi
  • Processor Model Number: d2800
  • Processor Brand: Intel
  • Brand Name: Partaker
  • Graphics Card Type: Integrated Card
  • Type: All-In-One
  • Products Status: Stock
  • Processor Main Frequency: 1.86
  • Screen Size: 10.1"
  • is_customized: Yes
  • COLOR: BLACK
  • CPU: Intel Atom D2800 Dual Core 1.8Ghz
  • Operating System: Windows Or Linux
  • Physical Dimension: 270*192*47(mm)
  • Resolution: 1024*600
Product Description

1 111Z7 i5 3317u 4 Z8 1037u 5 2Z9 C1037UZ9 i5 3317uZ9 i73Z10 C1037U Z11 J1900Z10 i7



upgrade



4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.



Ref. Photo as belows,



Wall mount Photo

  960

Upgrade link for the upgrade service: http://www.aliexpress.com/store/product/2014-stock-computador-de-mesa-host-computer-server-compatible-computers-home-office-assembled-desktop-mini-pc/1608019_32254907855.html

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi,

buy 10pcs for $10, Upgrade value, 1pc=$1)



system



Barebone pc ,no ram and hard driver

If customer buy the configuration with RAM, SSD, HDD, We can install system as belows,


XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5
Above is Cracked English Version.

Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)
systemDescription

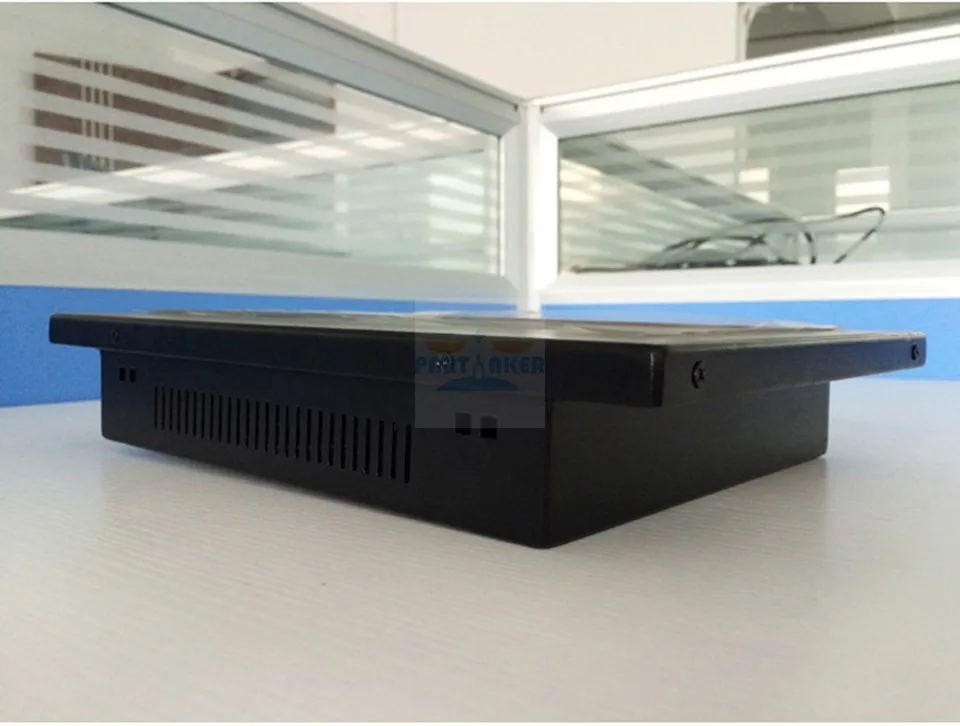

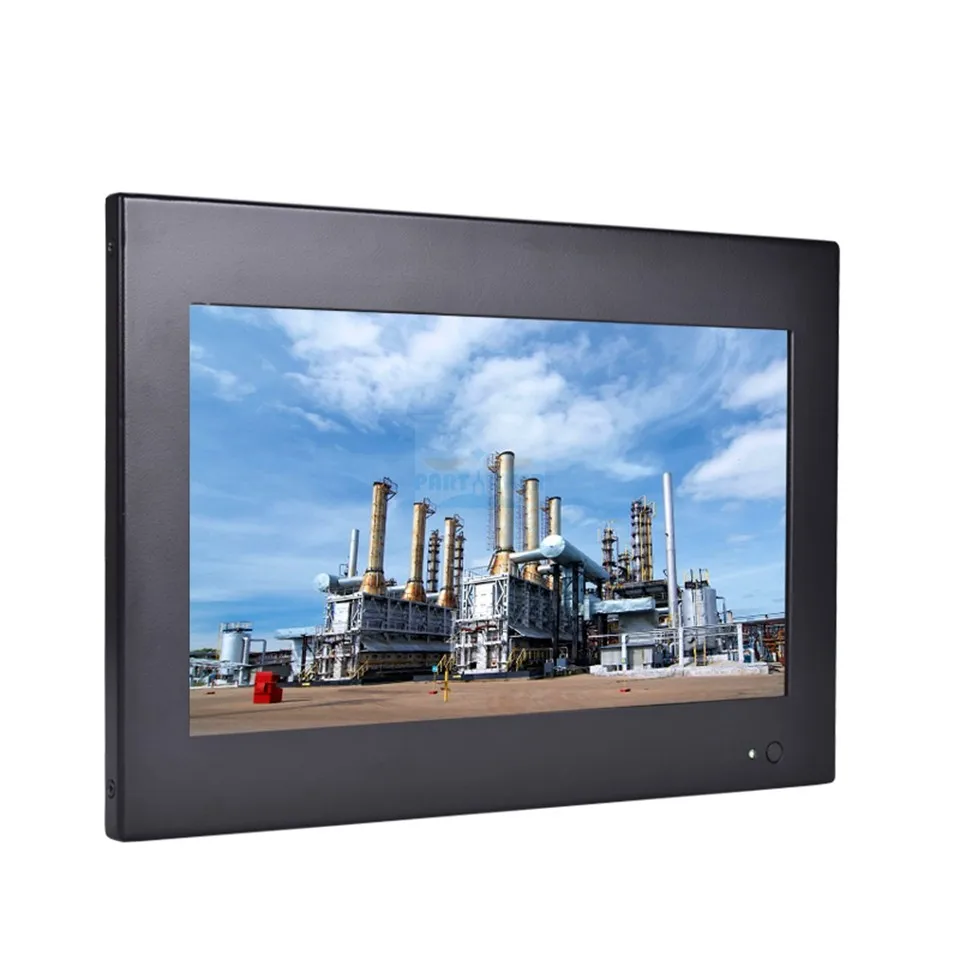

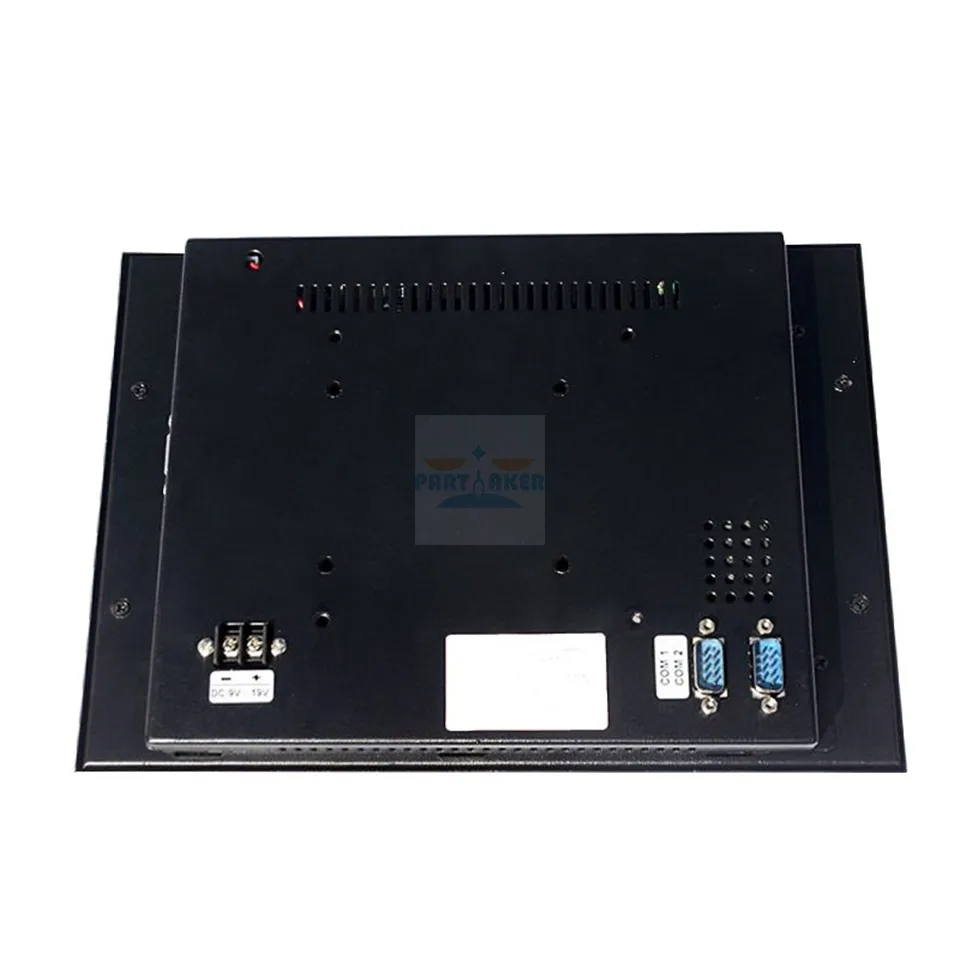

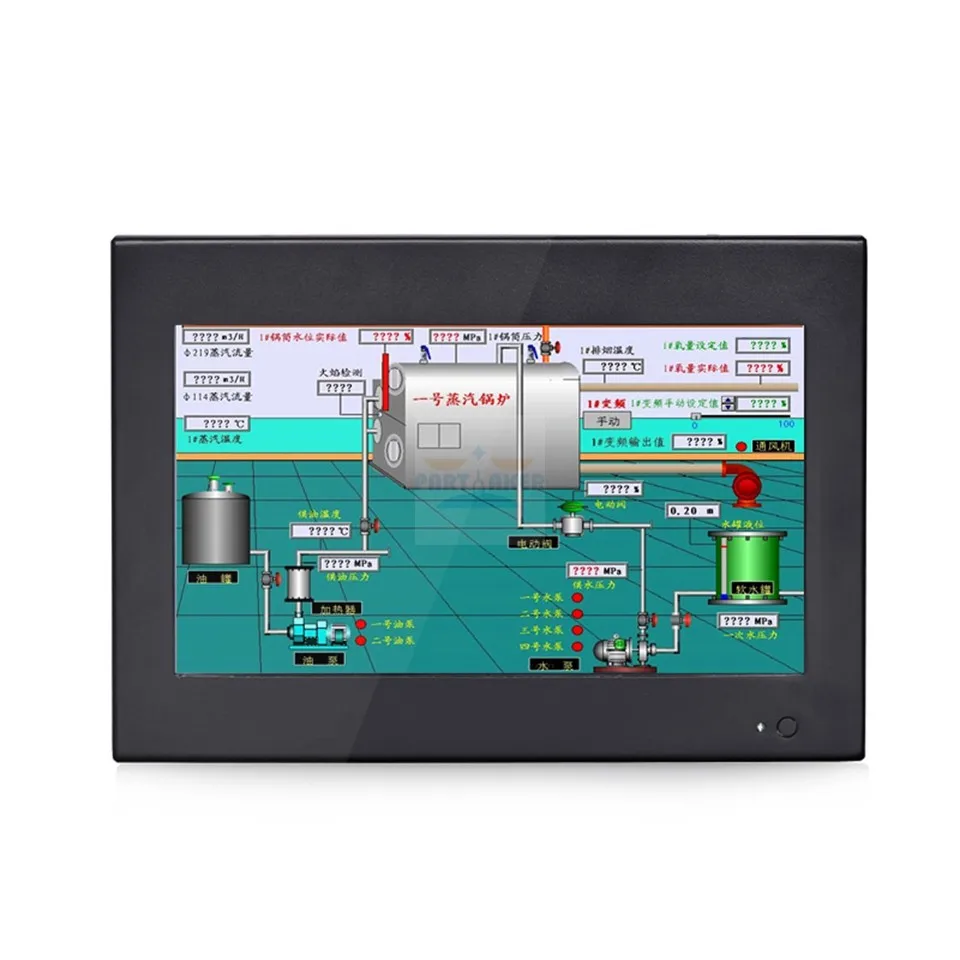

Partaker Z5 All In One PC with 10.1-inch 1024 * 600 Industrial 4-wire Resistive Touchcreen

Model Number:

Partaker Elite Z5

Screen Size:

10.1 Inch

Opening Hole Size:

227*183mm (Length*Width)

Screen Type:

Made-In-China 4 Wire Resistive Touch Screen

CPU:

Intel Atom D2800 Dual Core 1.8Ghz

OS:

Windows Or Linux

RAM/SSD:

Maximum 4G RAM, 1* MSATA SSD

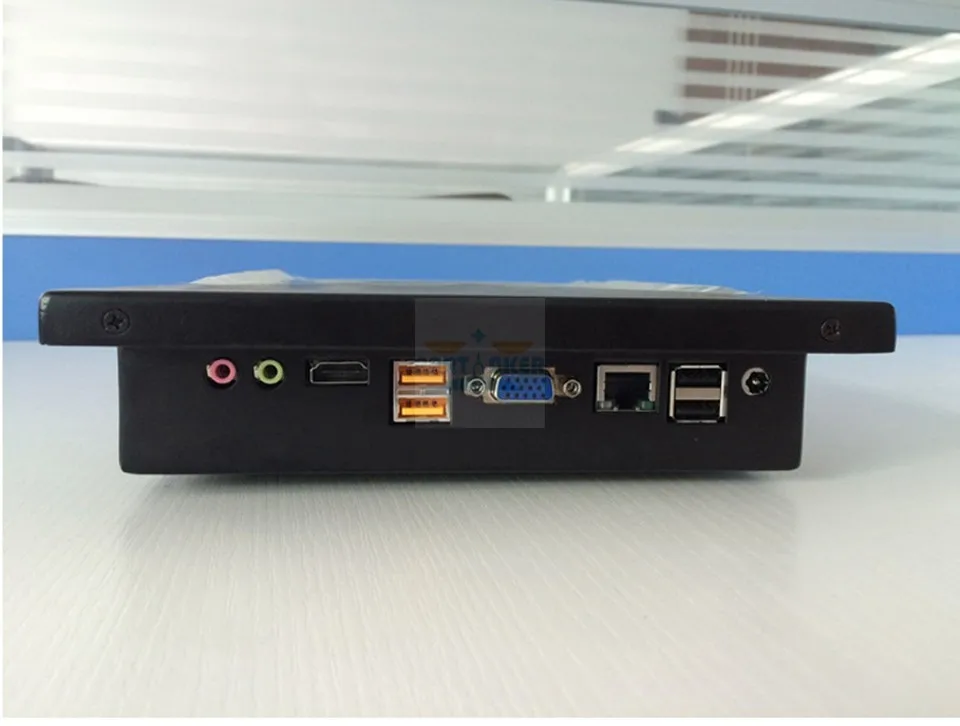

I/O:

4*USB2.0/2*COM

I/O:

1*VGA/1*HDMI/1*RJ45

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

270*192*47(mm)

Gross Weight:

3KGS

Features:

Intel Atom D2800 1.86Ghz Dual Core

Support 9-19V wide voltage input

Design of back - side fence type power interface

Performance stable, can be applied in harsh environments

Interface rich and complete

Support power-on boot, network wake-up

Standard VESA screw hole, can choose the installation method flexibly

Support WinXP, Win7, Win8, Win10, Linux etc….

Panel Structure:

Panel Size

10.1 Inch LED Screen

Resolution

1024*600

Display Brightness

250cd/m(2)

Contrast

800 : 1

Response Time

5ms

Touch Type

Resistive touch screen

Package Information:

Package Size

32.4CM(L)*25.5CM(W)*12.7CM(H)

Physical Weight

2.5KG / 3KG(Net/Gross)

Power Supply

Input: 180-240V~1.0A 50-60Hz Output: 12VDC  4A MAX

Power Cord

Power Cord*1

Touch Pen

Resistance touch pen*1

Buckle

Embedded Installation Buckle* 1 Set

Usage Environment

Operating Temperature:

-10~60 Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40  without condensation

Storage Temperature:

-20  ~ 70

Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods

Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single DisplayVGA+LVDS,HDMI+LVDS Synchronous / Asynchronous Dual Display

Motherboard:Fanless Design

I/O Interface:

Network: 1* Intel 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core
