Item specifics
  • Hard Drive Capacity: ≤ 40GB
  • Display Type: Touch Screen
  • Dispaly Ratio: 4:3
  • Memory Capacity: ≥ 4GB
  • Processor Series: Intel Atom
  • Processor Model Number: d2550
  • Type: All-In-One
  • Port: hdmi
  • Processor Brand: Intel
  • Screen Size: 12-inch
  • Brand Name: Partaker
  • Graphics Card Type: Integrated Card
  • Products Status: Stock
  • Processor Main Frequency: 1.86
  • Model Number: IN-2D4M2
  • is_customized: Yes
Product Description

Factory price 12\'\' touchscreen All In One PC multi-touch pc panel 2mm with 2 1000M Nics 2COM 4G RAM ONLY Windows and Linux

-_01

Editor Notes



Multifunction self-service computer provides 10 to 15 inch multi-touch screen,

a variety of services to meet the required applications, such as retail shelves billboard

exhibition interactive information systems, campus curriculum inquiry system and

even healthcare institutions versatile bedside stand. Easy to clean the whole plane of

the touch panel IP65 protection with slim design, can show the advantages of the various

service applications; programmable touch shortcut keys and a wealth of microphones,

radio frequency identification (RFID), the smart card chip reader , bar code scanners,

magnetic stripe card reader (MSR) and other options,

suitable for use in a variety of contexts.



Attributes



Configuration
Model IN-2D4M2
CPU Intel Atom D2550 Dual Core
GPU Integrated Intel GMA 3650 graphics core Four Thread 1.86Ghz 1MB
RAM Support NB Memory SO-DIMM DDR3 (Maximum to 4G RAM)
Storage Support 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1TB)
Wi-Fi Wireless-(150Mbps or 300Mbps optional)
Package

AIO+Power Supply+Power Cord (USA, European, UK Types for optional)+Stand



Rear I/O:



DC-IN

2* Gigabit Lan

4*USB

VGA

HDMI

Audio input and output

2*RS232





With Fan



Upgrade Service:



1. WiFi Optional, if need wifi,(150Mbps) builtin wireless add extra $8,

(300Mbps) add $10. Choose one from 150M and 300M.

2. Wall Mount add $10

3. USB Bluray DVD add $48, Normal DVD add $28



4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.



Ref. Photo as belows,



Wall mount Photo















960

Upgrade link for the upgrade service: http://www.aliexpress.com/store/product/2014-stock-computador-de-mesa-host-computer-server-compatible-computers-home-office-assembled-desktop-mini-pc/1608019_32254907855.html

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi,

buy 10pcs for $10, Upgrade value, 1pc=$1)



system

4G RAM ONLY, NO SSD OR HDD

NO OS



If customer buy the configuration with RAM, SSD, HDD, We can install system as belows,


XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5
Above is Cracked English Version.

Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)
systemDescription



Features:



Ultra-thin panel design, almost level with the cabinet panel with 420 lumens LED industry LCD screen with a resolution of 1024 * 768, similar products with the highest quality and cost-effective

Full Metal Jacket, 2mm ultra-thin panel design, suitable for embedded installation

Original 12-inch LCD screen LED industry, operating temperature -30 degree ~ 80 degree, the brightness of 420CD / resolution of 1024 * 768

Optional WIFI module
Option Single lan or Dual Lan

With a separate package

Specification

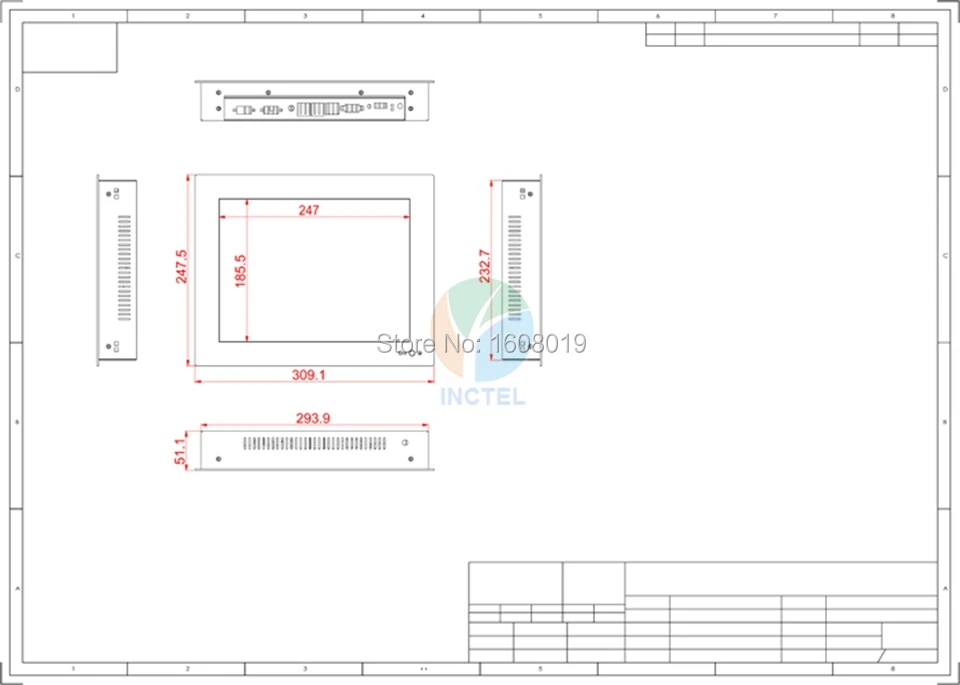

Dimensions:

309.1mm * 247.5mm

Hole Size:

295mm * 234mm

Display:

12.1-inch LED screen resolution of 1024 * 768 Industry

Touch screen:

Industrial 4-wire resistive screen

CPU:

ATOM D2550 Dual Core 1.86G

RAM

Hard Drive

NIC:

2* 1000M

Built-in speakers:

2W mono

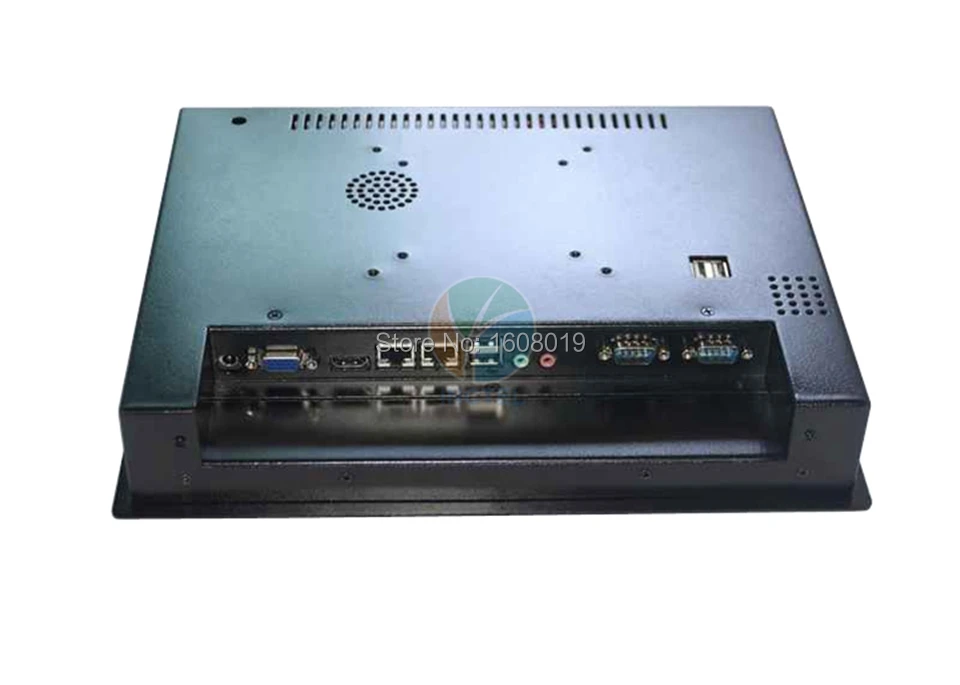

The lower side of the interface:

DC_IN * 1, LAN * 1, USB * 2, VGA * 1, HDMI * 1, AUDIO * 2, RS232 * 2

The back of the interface:

USB * 2

Gross weight:

4.5KG

Package Contents:All-in-one touchscreen pc, 12V 4A power supply,power cord, Flush mounting clips*4

Features:

12V DC input, Power consumption 20W, support calls boot, Wake on LAN

Machines preloaded WINXP Or windows 7, good stability , bootable work long hours

Note: This machine WINXP system graphics driver does ot support 3D hardware acceleration, can not run 3D applications, if there is such a need, you must use WIN7 system.
