Item specifics
  • Display Type: Touch Screen
  • Hard Drive Capacity: ≤ 40GB
  • Processor Series: Intel Celeron
  • Dispaly Ratio: 4:3
  • Screen Size: 19"
  • Weight: 8KG
  • Model Number: M5
  • Type: All-In-One
  • Display resolution: 1600x900
  • RAM Type: DDR3
  • Memory Capacity: ≤ 128MB
  • Processor Core: Quad Core
  • Processor Brand: Intel
  • Port: HDMI+VGA
  • Brand Name: Partaker
  • Graphics Card Type: Integrated Card
  • HDD Rotation Speed: 7200 rpm
  • Drive Type: No CD ROM
  • Products Status: Stock
  • Mouse & Keyboard: No
  • Processor Model Number: J1900
  • Processor Main Frequency: 1.8
  • Color: Silver
  • is_customized: yes
  • Dimensions: 496*304*51mm
  • Certification: CCC / CE / FCC
  • Memory Capacity: Shared Memory
  • HDD Interface: SATA3
  • Graphics Type: Integrated Card
  • Sound Card Type: 6.1
  • Operating System: Windows 7
Product Description

Partaker 19.5 inch Touch Screen All in One PC with J1900 Processor Support Intel NM70-HM77 Chipset

-_01

Editor Notes

Industrial Touch Monitors PC(ITM) provides rugged,

stand alone industrial monitors pc,

is designed for easy cleaning especially in harsh environments.Attributes

Rear I/O:

VGA*1

HDMI*1

RJ45*1

DC-in*1

USB2.0*4

Audio*2

With Fan

Upgrade Service:

1. WiFi Optional, if need wifi,(150Mbps) builtin wireless add extra $8, (300Mbps) add $10. Choose one from 150M and 300M.

2. Wall Mount add $10

3. USB Bluray DVD add $48, Normal DVD add $28

4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

Ref. Photo as belows,

Wall mount Photo

 PARTAKER M5 19.5 All IN ONE PC MOUNT (1)PARTAKER M5 19.5 All IN ONE PC MOUNT (2)PARTAKER M5 19.5 All IN ONE PC MOUNT (3)PARTAKER M5 19.5 All IN ONE PC MOUNT (4)

Upgrade link for the upgrade service: http://www.aliexpress.com/store/product/Hot-selling-mini-pc-desktop-all-in-one-computer-for-HTPC-Office-Educational-etc/1501885_32231555556.html

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi, buy 10pcs for $10, Upgrade value, 1pc=$1)

system

Loving HeartRoseGift

Barebone

No RAM SSD or HDD

NO OS

 If customer buy the configuration with RAM, SSD, HDD, We can install system as belows,

windows 7/Ubuntu Linux optional

(if not leave message, we will ship at Random.)

Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5

Above is Cracked English Version.

Original Windows, please buy it locally!

For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)

system
Description
Specifications
CPU Supported Intel Ivy bridge / BayTrail-D (optional)
Mainboard Supported Intel NM70-HM77 / Thin mini-ITX (optional) J1900;J1800
Screen Size 19.5”1600*900 LED
Touch Screen Capacitive multi-touch (optional)
Graphics  Intel HD Graphics
Memory DDR3 2GB-8GB(optional)
HDD  2.5”SATA 500GB-2TB/mSATA SSD 16GB-128GB (optional)
ODD N/A
Wireless 802.11B/G/N(optional)
LAN 10/100/1000M bps
back I/O ports VGA*1,HDMI out*1,RJ45*1,DC-in*1,USB2.0*4,Audio*2
Webcam 0.3M ~ 5.0M(optional)
Speaker High-quality speaker, 3W*2
Power  DC 19V/3.42A 65W
Battery Capacity N/A
Dimensions 496×304×51mm (W×H×T)
Package Size 550×110×395mm (W×H×T)
Weight  3.82Kg
OS Supported Windows 7/8/10
Certification CCC / CE / FCC

-_03-_04-_05
Additional

About Power Cord:

We will ship the type of power cord, based on your area.



Power Cord

Gallery

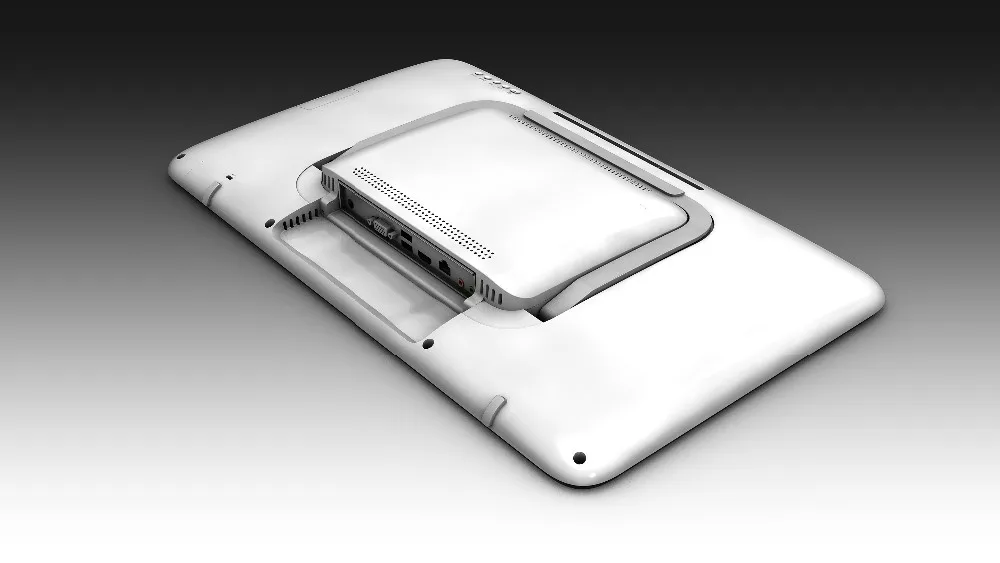

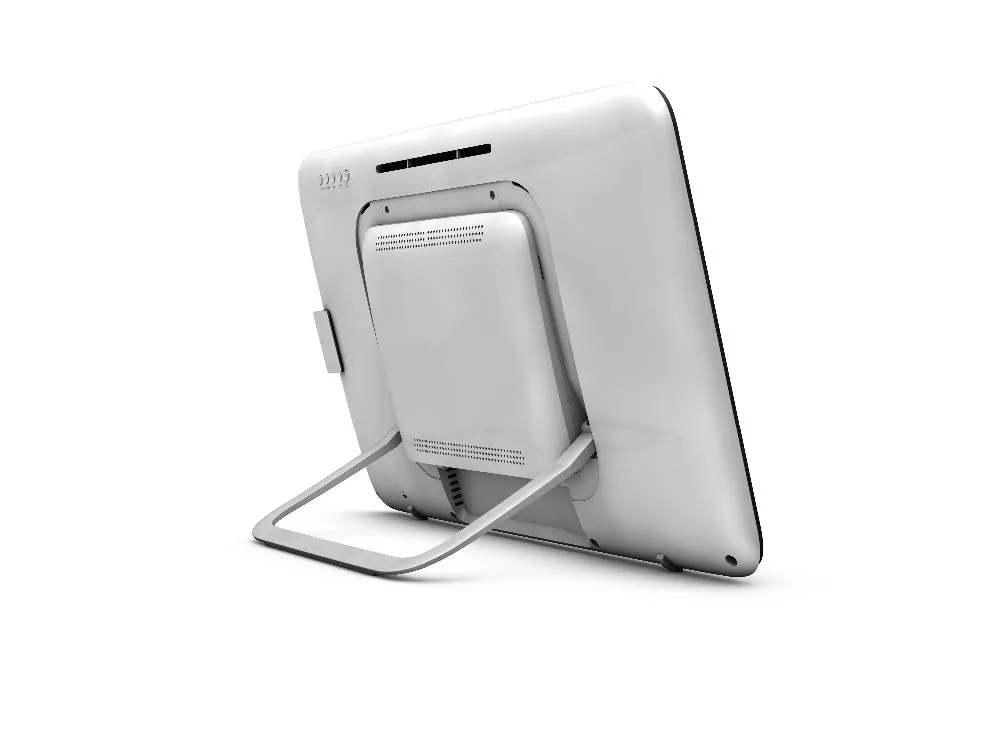

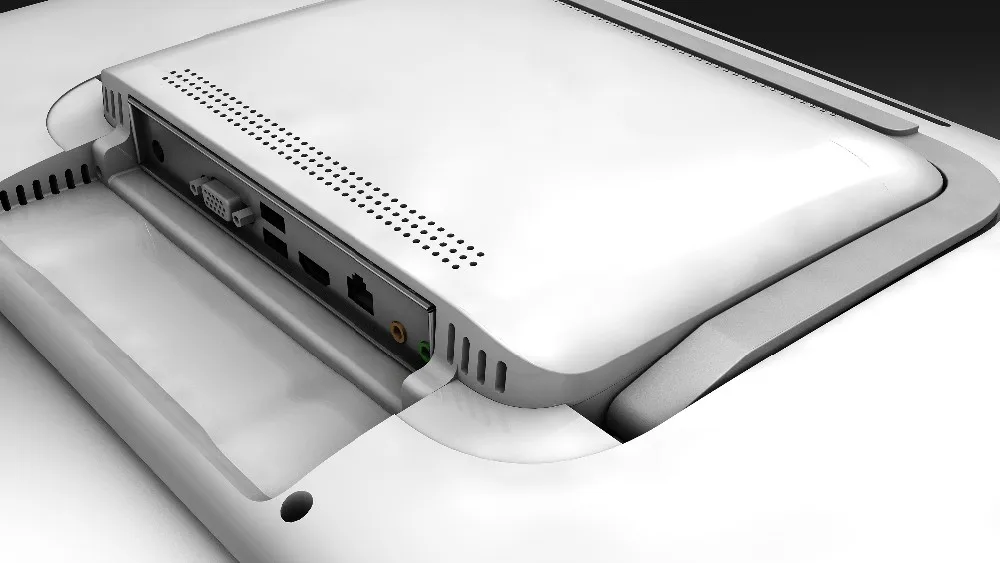

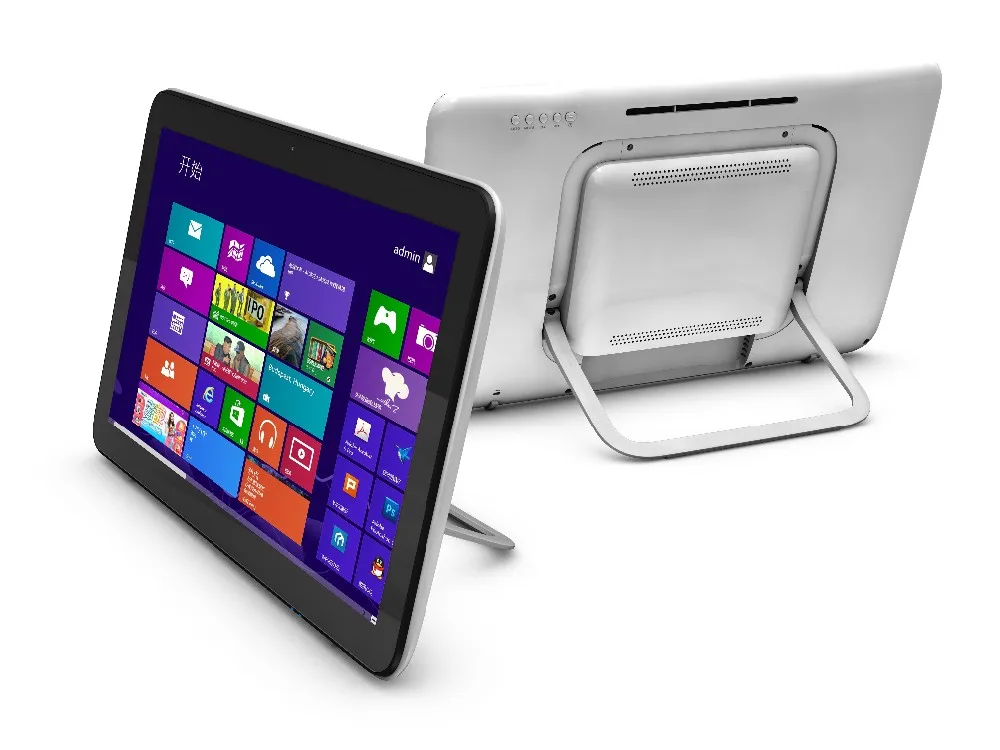

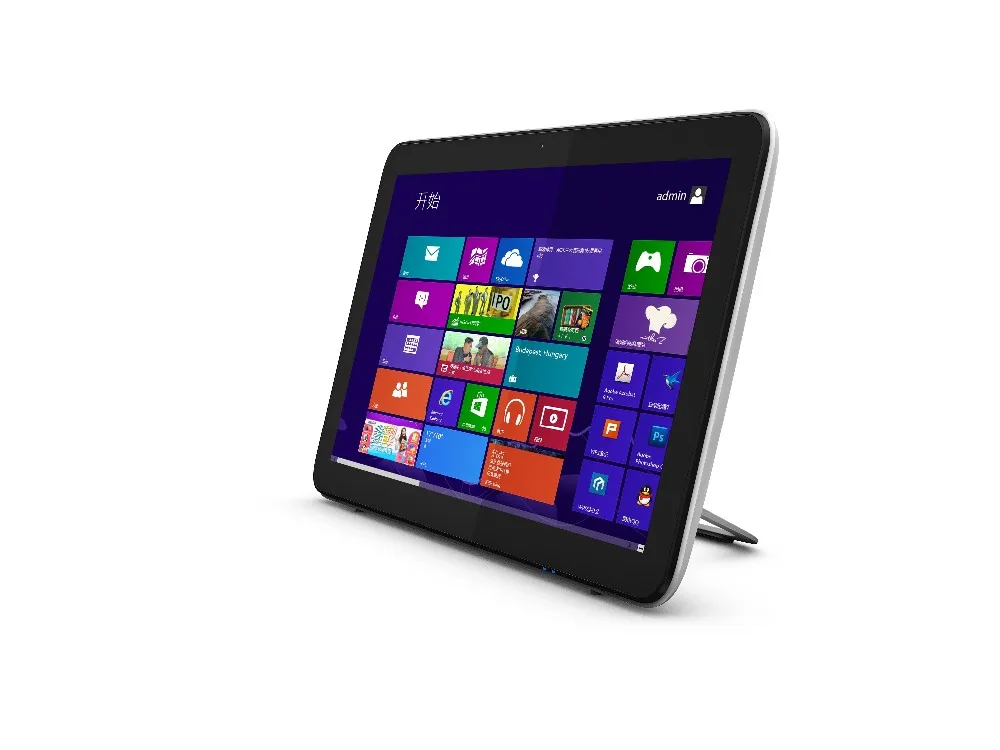

PARTAKER M5 19.5 All IN ONE PC (5)PARTAKER M5 19.5 All IN ONE PC (6)PARTAKER M5 19.5 All IN ONE PC (2)PARTAKER M5 19.5 All IN ONE PC (3)PARTAKER M5 19.5 All IN ONE PC (8)PARTAKER M5 19.5 All IN ONE PC (9)

-_07-_08-_09-_10





Packaging Details
  • Unit Type: piece
  • Package Weight: 8.0kg (17.64lb.)
  • Package Size: 55cm x 40cm x 11cm (21.65in x 15.75in x 4.33in)
