Item specifics
  • Model Number: Elite Z13
  • Display Type: Touch Screen
  • Processor Series: Intel Celeron
  • Port: LAN
  • Processor Model Number: Intel Celeron C1037U 1.8Ghz
  • Type: All-In-One
  • Processor Brand: Intel
  • Brand Name: Partaker
  • Graphics Card Type: Integrated Card
  • Processor Main Frequency: 2.6
  • Products Status: Stock
  • Memory Capacity: 4G RAM
  • Hard Drive Capacity: 64G SSD
  • Screen Size: 15 inch
  • RAM: 4G RAM
  • SSD: 64G SSD
  • HDD Interface: SATA
  • Operating System: Windows 7
  • Graphics Type: Integrated graphics
Product Description

all in one pc



all in one computer

Editor Notes

Model Number:

Partaker Elite Z13

Screen Size:

15 Inch

Opening Hole Size:

334*232mm (Length*Width)

Screen Type:

Taiwan High Temperature 5 Wire Touch Screen

CPU:

Intel Core I5 3317u Dual Core to 2.6Ghz

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

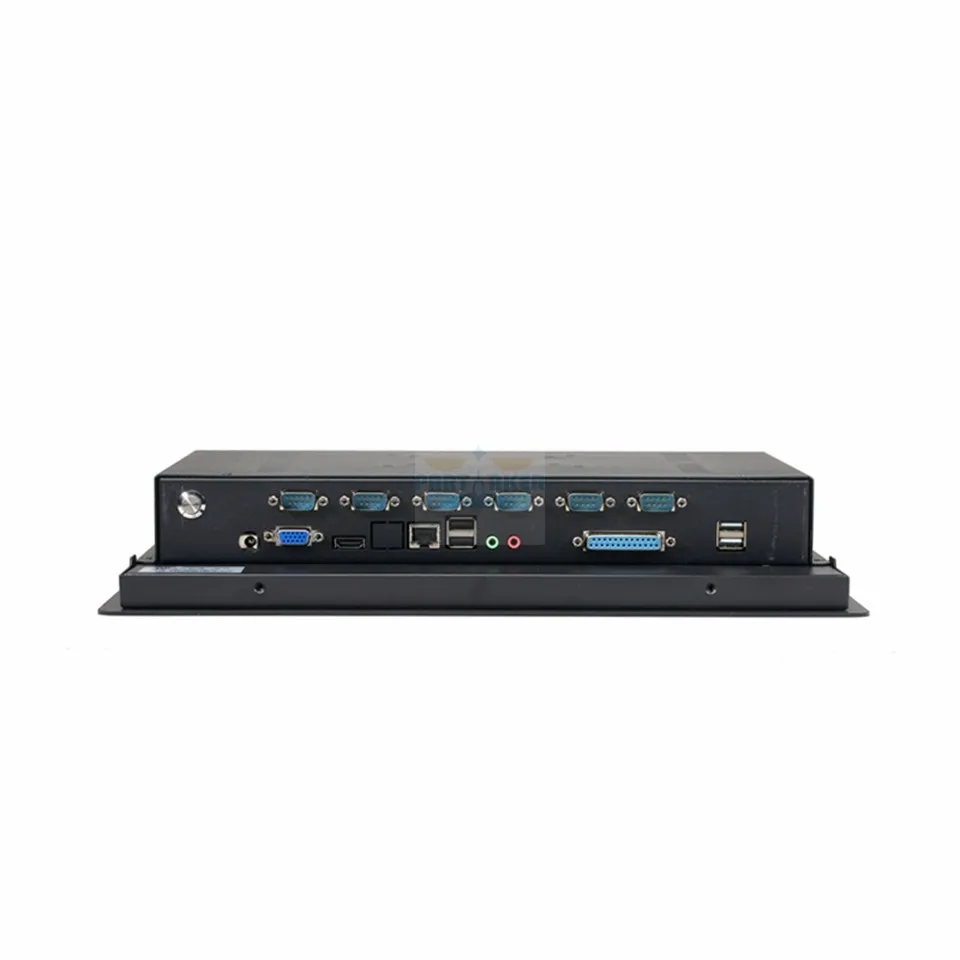

I/O:

4*USB2.0/2*COM

I/O:

1*VGA/1*HDMI/1*RJ45

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

355.8*287.3*53.6(mm)

Gross Weight:

7.5 KGS



Opening Hole Size Drawing:


Features:

Resolution 1024*768, Screen Ratio 4:3

Optional WiFi module, support for 802.11b / g / n

Support call on boot, network wake-up

Standard VESA screw hole, can choose the installation method flexibly

Support WinXP, Win7, Win8, Win10, Linux etc….



Panel Structure:

Panel Size

15 Inch LED Screen

Resolution

1024*768

Display Brightness

430cd/m(2)

Contrast

700 : 1

Response Time

8ms

Touch Type

Using high-quality resistance touch screen click life> 1 million times



Usage Environment

Operating Temperature:

-10~60 Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40  without condensation

Storage Temperature:

-20  ~ 70



Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods



Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS,HDMI+LVDS Synchronous / Asynchronous Dual Display

Motherboard:  Fan Design



I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core

Gallery



Z12T (4)



 Z12T (6)Z12T (5)Z12T (3)Z12T (1)Z12T (2)














Model Number:

Partaker Elite Z12T

Screen Size:

15 Inch

Front Panel:

 2MM Ultra Thin

Opening Hole Size:

359*290mm (Length*Width)

Screen Type:

Made-In-China 5 Wire Resistive Touch Screen

CPU:

Intel Atom D2550 Dual Core 1.86Ghz

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 4G RAM, 1* MSATA + 1*2.5 Inch HDD

I/O:

4*USB2.0/6*COM

I/O:

1*VGA/1*HDMI/1*RJ45 (Dual RJ45 Optional, contact us for it)

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

376*307*63.6(mm)

Gross Weight:

6.5 KGS
