Item specifics
  • Max Processors: 1
  • Products Status: Stock
  • Processor Main Frequency: 3.0 GHz
  • Blade Server Architecture: 1U
Product Description

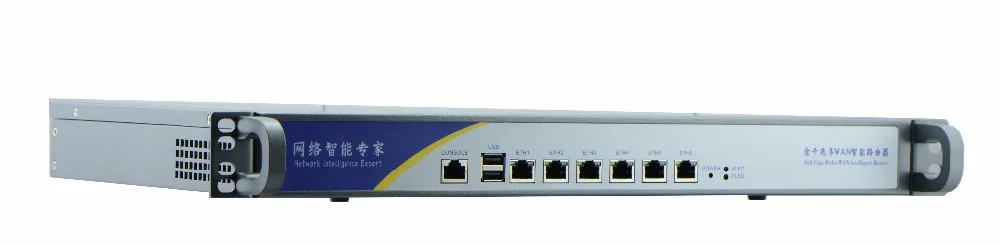

Intel Pentium G2030 Dual Core 3.0Ghz

Ivy Bridge

Intel HD 2500 Graphics

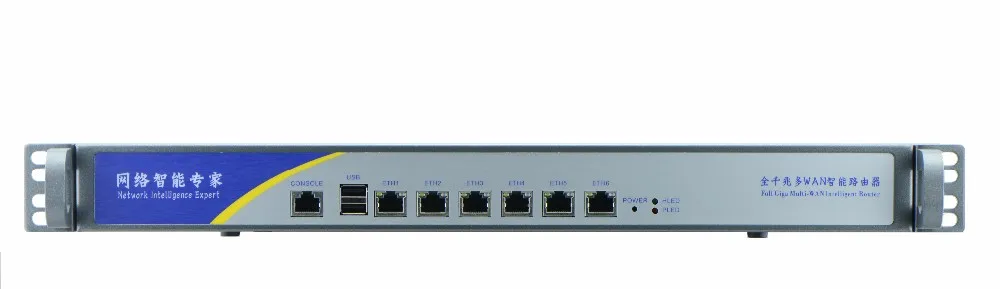

back I/O:

Console

USB*2

Lan*6

2*SFP 82580DB

VGA

With Fan

This machine has two groups of BYPASS.(LAN1~4 supports 2 groups of BYPASS function)

Factory direct sale, We ensure the best price , best quality! Welcome OEM ODM! Chassis can be customized, motherboard , front panel PVC LOGO , software can be OEM customized.

Equipment can be installed by RouterOS latest official stable version v5.25 Genuine clone can upgrade into L6 authorized official 6.x, you can reinstall. Can choose the front PVC panel without any logo, Intel B75 chip , 6 * 1000M intel pci-e network port +2*SFP 82580DB, 1-2G/DDR3 , 4GB-8GB industrial SSD, ROS L6 authorized 6.x can upgrade.



Configured

Barebone

RAM:NO

DISK CAPACITY:NO SSD/HDD

OS:NO

Parameters

Intel Pentium G2030

The main parameters

Model

Pentium G2030

Chip factory

Intel

Interface Type

LGA 1155

Core Type

Ivy Bridge

Production

22 nm

Cores

Dual-core

Threads

Dual thread

Frequency

3.0GHz

Three cache

3M

Function parameters

Shows the core model

Intel HD Graphics 2500 Core Graphics

Support memory frequency

DDR3 1333MHz

Working Power

55W

Other parameters

Properties Keyword

64-bit processor, dual-core processor

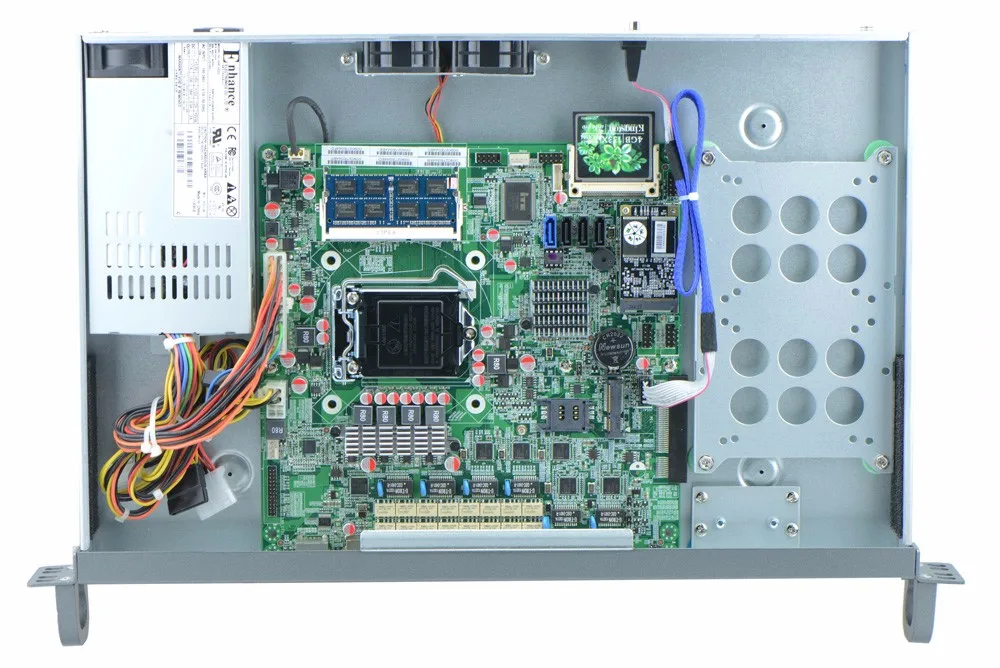

Detailed configuration



B75 82574L



NIC : intel PCI-E 1000M 6 * 82574L+2*SFP 82580DB

Motherboard : intel B75 chip supports a full range of 1155 -pin CPU including XEON E3 series

Power : Genuine best quality supply rated power 250 watts maximum power of 300 watts ( not small HTPC power which can ensure I7 series CPU power)



Software: Support ROS/RouterOS, Mikrotik,PFSense,Panabit,Wayos with intelliegent flowcrl,Monowall,Radius_Manager, BYTEVALUE, netzone webcache, hi-spider, ikuai8, and so on

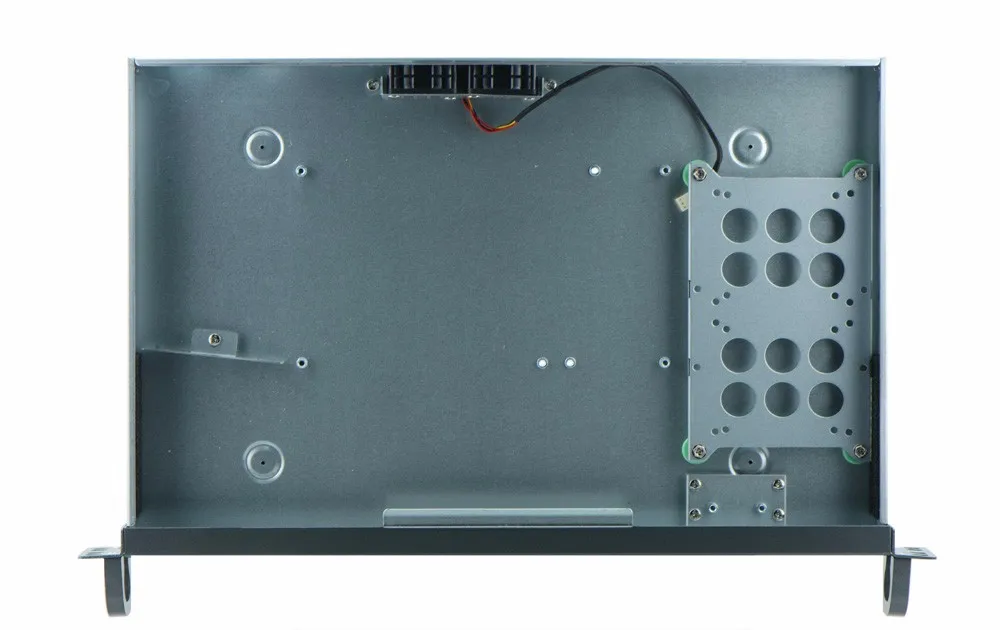

Built- SSD hard drive bracket, you can directly install the SSD



The new chassis, new blue plate



RJ45 standard COM port , compatible with cisco standard , built-in standard SATA interface , minipci-e interface can be installed SSD, scalable wifi wireless card. With VGA easy debugging (optional without VGA interface ) , front 2 USB interfaces , No need disassemble the chassis, and can reinstall the system ( providing tutorials) , optional 2.5-inch hard drive, Can contact us for different configuration requested by you.



Standard 1U size  430mm(L)*380mm(W)*46.2mm(H)  for a variety of conventional machines

About the transportation:

1.DHL,UPS,Fedex,TNT or EMS is available for shipping.

We are shipping to worldwide except some countries which due to custom issue: Brazil, Turkey, Russia and far area and we can not accept for additional charge for far area fees.

2.Import duties, taxes and charges are not included in the item price or shipping charges.These charges are the buyer\'s responsibility.

Please check with your country\'s customs office to determine what these additional costs will be prior to placing.

and the goods as other item name ,or specify and value for custom, please inform us when making order.

3.we accept Drop shipping, the buyer can\'t see any information about us when they received package,

we are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.







Packaging Details
  • Unit Type: piece
  • Package Weight: 6.5kg (14.33lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
