Item specifics
  • Products Status: Stock
  • Brand Name: JINSHENGDA
  • Computer Connections: 1 Ports
  • Package: No
  • Interface Type: HDMI
  • Monitor Connections: 1 Ports
  • Model Number: Other
  • Resolution: Other
Product Description
aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()
Description:
  • 100% brand new and high quality

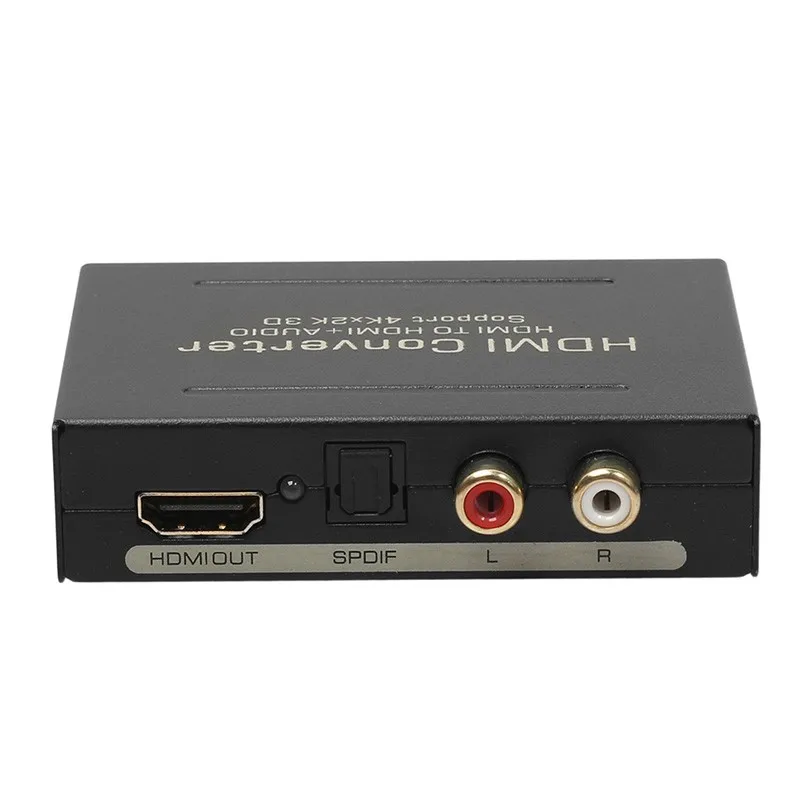

  • The HDMI to HDMI converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF audio out port.
  • This devices can extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output AND SPDIF output at the same time.
  • It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

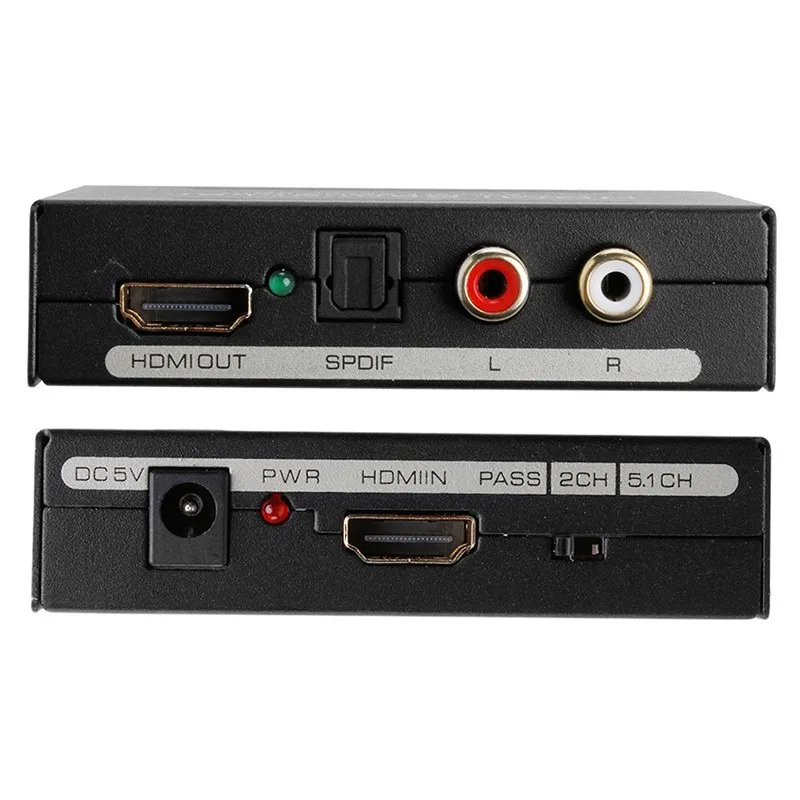

  • Connecting and operating
  1. To use one HDMI cable to connect the HD Source with the input HDMI port.
  2. To connect the converter HDMI output port with the HD Display
  3. To use one audio cable to connect the converter R/L port with the audio equipment.
  4. To use the optical cable to connect the SPDIF port with the audio equipment.
  5. To connect the converter with 5V DC power adaptor
  • Specifications:
  1. Easy to install
  2. High quality and compatibility in Product Category
  3. Supports Apple TV and various Blu-ray player
  4. One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
  5. Output audio support : SPDIF+R/L analog Audio Output.
  6. SPDIF output : support 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH(it does NOT support Dolby Digital Plus and PCM 5.1CH and beyond)
  7. Input Resolution : up to 3840×2160@30Hz, 4096×2160@30HZ
  8. LED indication
  9. Power supply : DC 5V/1A
  10. HDMI resolution : 2160p@30Hz/1080P@50/60Hz/1080i/720p/576p/576i/480p/480i
  11. Support video color format : 24bit/deep color 30bit,36bit
  12. Audio output : L/R+SPDIF
  13. Max bandwidth 340MHz
  14. Max baud rate 10.2Gbps
  15. Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
  16. Input/Output DDC signal 5Volts p-p (TTL)
  17. Input cable distance. ≤7m AWG26 HDMI standard cable
  18. Output cable distance ≤8m AWG26 HDMI standard cable
  19. Max working current : 500mA
  20. Operating Temperature range (-15 to +55°C)
  21. Operating Humidity range 5 to 90%RH (No Condensation)

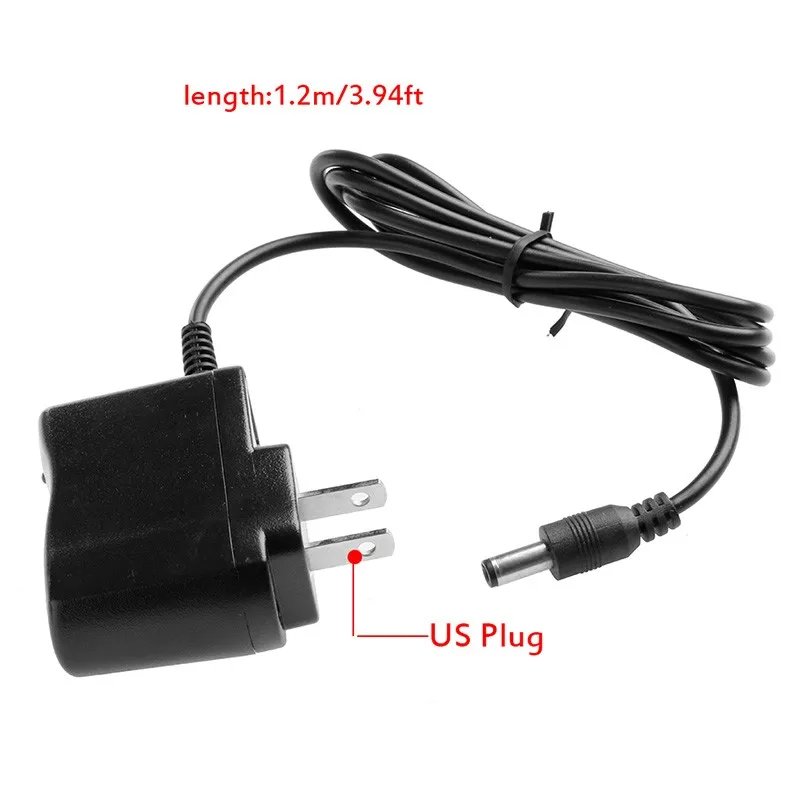

  22. Power adpter fomat:AC 100V-240V 50/60HZ,DC 5V/1A
  23. Plug: US Plug ( please note if it is fit for your country standard )
  24. Size(L*W*H):8.50*6.00*2.10cm/3.35"*2.36"*0.83"
  25. Power adapter cable length:1.2m/3.94ft
  26. Quantity:1Set
  • Note:
  1. Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
  2. And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

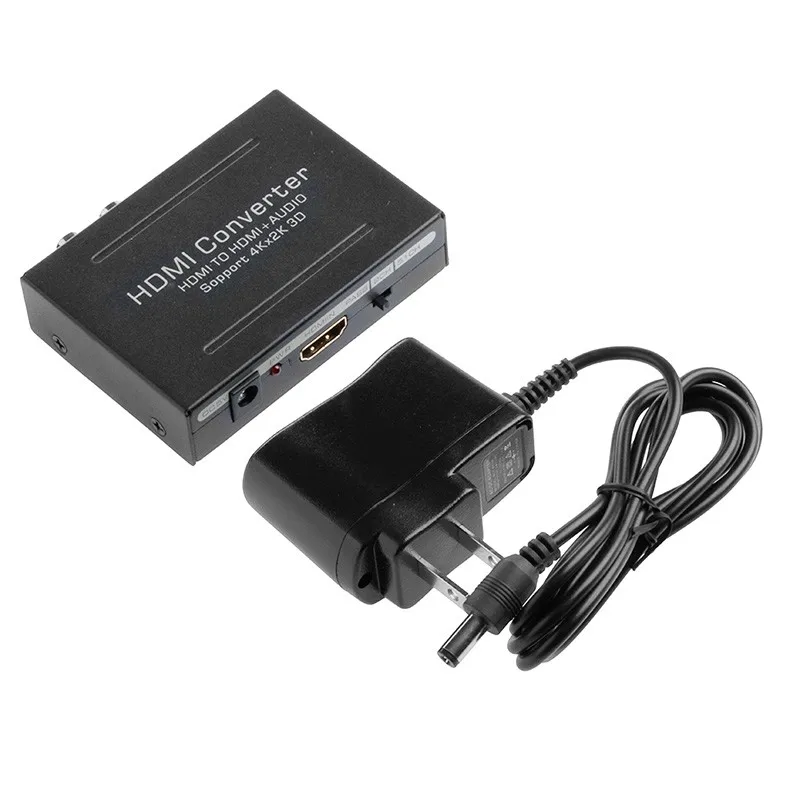

Package includes:(No retail package)
  • 1Pc x  HDMI Converter
  • 1Pc x Power supply
  • 1Pc x Chiese and English manual





Packaging Details
  • Unit Type: Set
  • Package Weight: 0.289kg (0.64lb.)
  • Package Size: 10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
