Item specifics
  • Products Status: Stock
  • Package: Yes
  • Interface Type: HDMI
  • Model Number: s008
  • Resolution: 1080P
  • Computer Connections: SDI
  • Monitor Connections: HDMI
  • Size: 9.5*4.3*2.3cm
  • Weight: 150g
  • Maximum operating current: 500mA
  • The input audio signal: SDI Inline
Product Description

S008 Mini 3G SDI To HDMI Converter HDMI Adapter Support SD/HD-SDI/3G-SDI On HDMI Display For DVD Set Top PC Video games

Introduction:

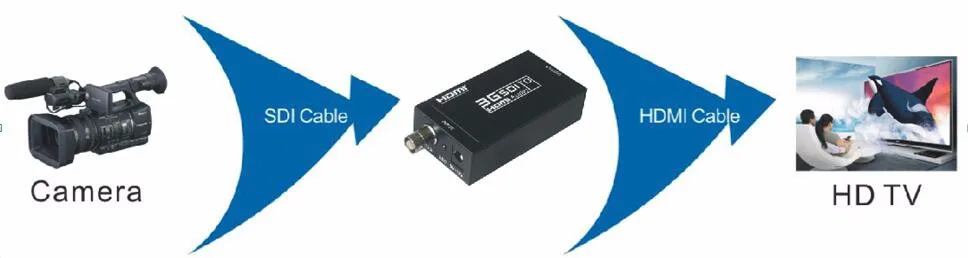

The MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

Features:
1.Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2.Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3.Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
4.Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5.Connect with other units to extend your signal over long distances

Accessories:
1*SDI TO HDMI Converter
1*Manual
1*Power Adapter

( Note: Please leave a message which plug do you need . US plug, UK plug or EU plug ? )

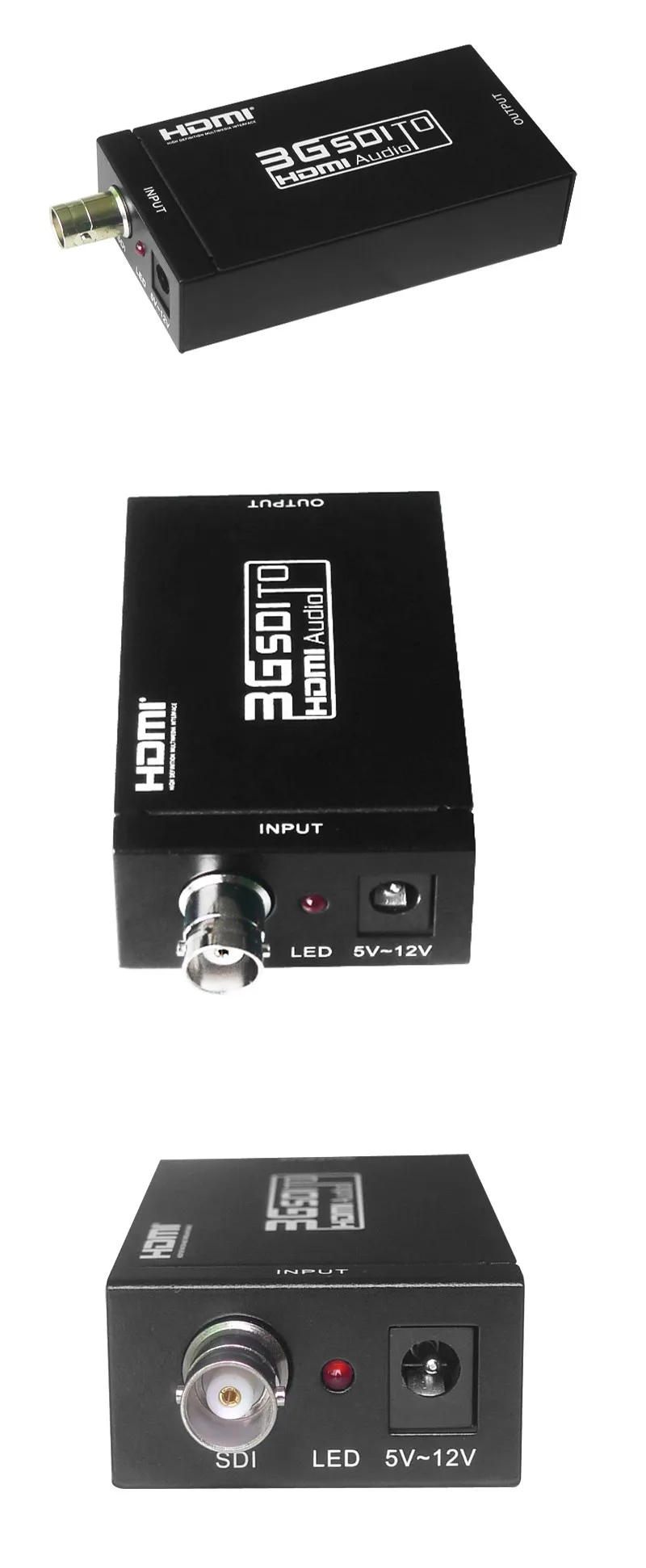

item pictures
