Item specifics
  • Package: Yes
  • Model Number: Gold NX-03
Product Description

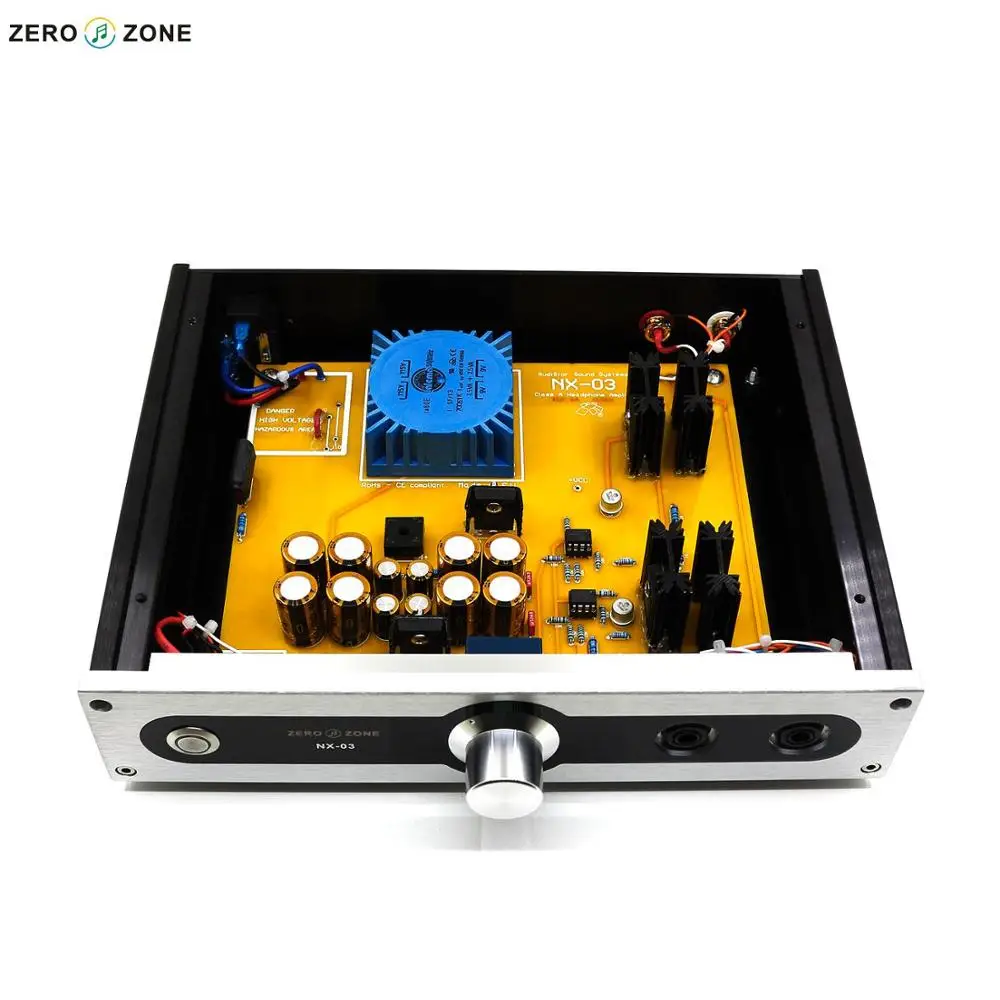

Gold NX-03 Class A Headphone amp base on Italy RudiStor NX03 amplifier


This is a finished headphone amplifier,The amp board is base on famous Italy RudiStor NX03 headphone amplifier


Works voltage:AC110V or AC220V for choose

Size:280*62*211.5mm(W*H*D)


Maximum output power: 1.5 W (16 ohm load)
Match headphone impedance: 4-1000 ohms
Maximum Conversion Rate: 32 ohm 16vpp
Gain: 15 db
Frequency response: DC-100,000 Hertz less than 0.15 db
Background noise: Less than -113 dB
Total harmonic distortion: less than 0.003% (13vpp, 32 ohms)

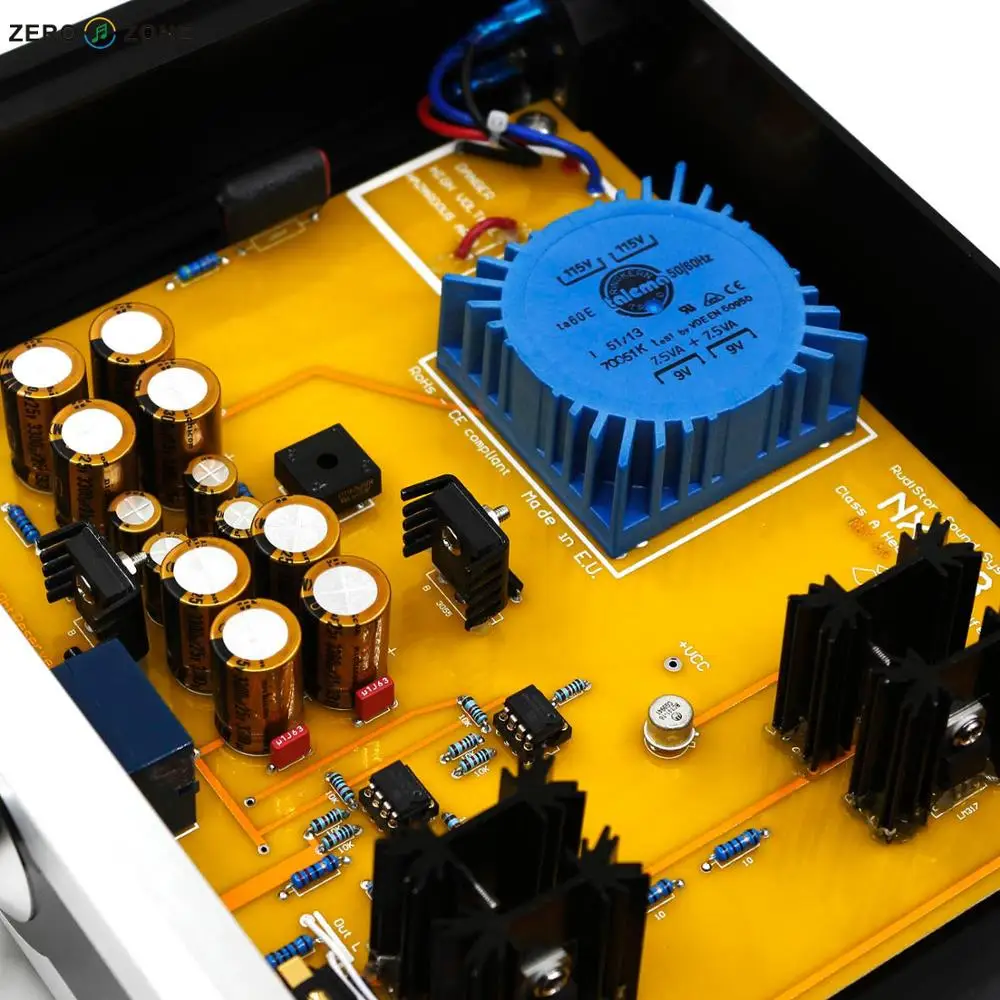

The main materials:

All capacitors use genuine Nichicon.
BBOPA2134 op amp.
15W TALEMAL sealed transformers. VISHAY Resistors

ALPS 27 type potentiometer.
The power Transistor is original imported ST TIP3055.
Power part ST TIP2955.
Full Aluminum chassis.
US CMC RCA.
